DYTZ Series Actuator Cylinder Electric Hydraulic Pusher/Thruster Brake

FOB Reference Price:Get Latest Price
$60.00 - $1,000.00 / Pieces | 5 Piece/Pieces (Min. Order)
Maximum Stroke:
2000mm
Shaft Diameter:
10-1500mm
Model Number:
DYTZ--02
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining
Standard or Nonstandard:
Nonstandard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
Stainless Steel
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Boli
Product Name:
DYTZ Series Actuator Cylinder Electric Hydraulic Pusher/Thruster Brake
Working Pressure:
5-300Mpa
Material:
Carbon Steel / Stainless steel
Type:
Electric Motor Hydraulic Cylinder
Application:
For Tractors, Trucks and Agricultural
Thrust Force(10N):
450-20000
Pulling Force(10N):
310-15000
Pushing Speed:
25-110mm/s
Pulling Speed:
35-140mm/s
Power Consumption:
0.75-15kw
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Carton,Wooden Box,Steel Tower(or according to customers' requirements)
Port
Shanghai or as required
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Product Description

DYTZ Series Actuator Cylinder Electric Hydraulic Pusher/Thruster Brake

The electric hydraulic push rod has the advantages of small volume, flexible operation, stable work characteristics, can start with load, push and pull, with overload protection device. Can adapt to control operating distance, risk and high altitude areas. The push and pull type with a single push, pull and push and pull single; speed type push, pull, push and pull speed speed speed speed or not; locking type push, pull, push and pull lock lock lock or push and pull is not locked. Pusher stroke: 50 ~ 3000mm.

Electric Pusher

Electric Hydraulic Ram

Electric Hydraulic Ram

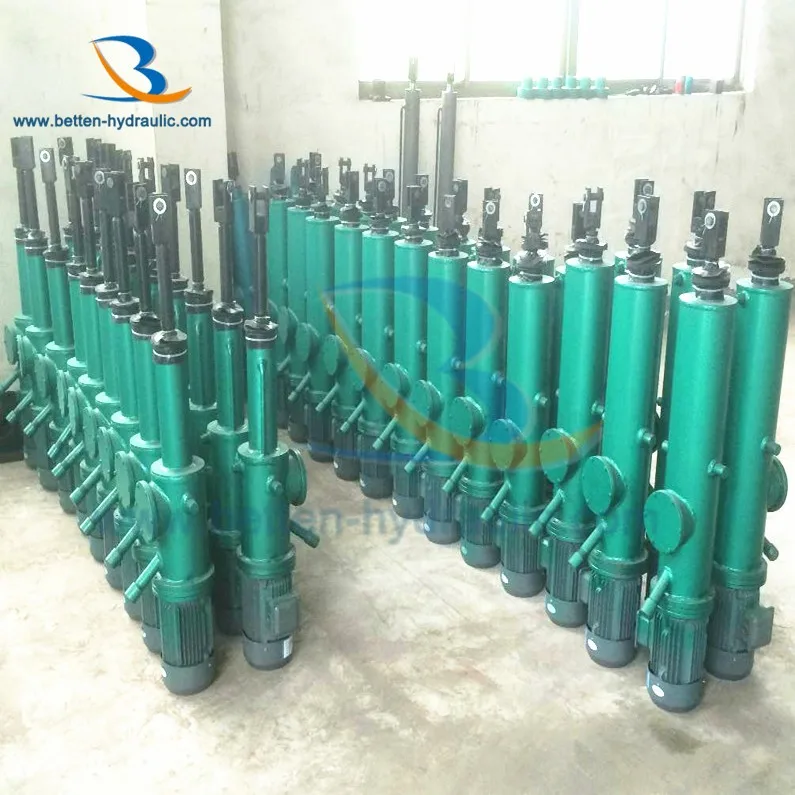

DYTZ series Electro-hydraulic pusher is a set machine, electricity, liquid as one of the hydraulic driving device, can be widely used in metallurgy, building materials, chemical industry, lifting the transport and port handling machinery, the valve gate, reversing, tilting, swing and other mechanical drive control amount, can replace the traditional electric putt, hydraulic cylinder ( with a hydraulic station drive ) and cylinder ( by pump station drive control ).

Technical Data
Model
Pushing Power (10N)
Pulling power (10N)
Push Speed
Pull Speed
Motol Type
Stroke
(mm)
DYTZ450-/110
450
310
110
140
Y802-0.75KW
50-800
DYTZ700-/110
700
510
110
140
Y90S-4-1.1KW
50-1500
DYTZ1000-/110
1000
750
110
140
Y90L-4-1.5KW
50-1500
DYTZ1750-/90
1750
1300
90
115
Y100L1-4-2.2KW
50-2000
DYTZ2500-/90
2500
2050
90
115
Y100L2-4-3KW
50-2000
DYTZ3000-/90
3000
2500
90
115
Y100L2-4-3KW
50-2000
DYTZ4000-/80
4000
2950
80
100
Y112M-4-4KW
50-2000
DYTZ5000-/60
5000
3300
60
90
Y112M-4-4KW
50-2000
DYTZ6000-/60
6000
3800
60
90
Y132S-4-5.5KW
50-2500
DYTZ7000-/50
7000
4500
50
75
Y132S-4-5.5KW
50-2500
DYTZ8000-/50
8000
5000
50
80
Y132M-4-7.5KW
50-2500
DYTZ10000-/40
10000
6500
40
60
Y132M-4-7.5KW
50-2500
DYTZ15000-/35
15000
11000
35
45
Y132M-4-7.5KW
50-2500
DYTZ20000-/25
20000
15000
25
35
Y132M-4-7.5KW
50-2500

Main characteristics


1, compact structure, convenient installation, small occupied space, easy maintenance;

2, circuit is provided with a bidirectional pressure self-locking device, can be in the range of travel stop in any position and self locking, and maintain constant output force;

In 3, when the accident off, push rod can be automatically locked in this position, to avoid the generation of accidents;

4, all concentrated in the hydraulic device inside the body, without external pipelines, oil seal are imported brand-name seal, the sealing effect is good, no liquid leakage pollution, and long service life;

5, simple electronic control, through the addition of a limit switch, is easy to realize the remote and dangerous regional operations control, automatic control and computer ( PLC).

Our Company

Betten Hydraulic-Built Cylinders to Fit Your Needs


As an experienced Hydraulic Cylinder Manufacturer, Betten Machinery is built to develop the overseas business of Boli Hydraulic & Pneumatic Technology Co., Ltd which is known as a professional manufacturer of Oil Cylinder,Pneumatic Cylinder, Hydraulic System and Related Spare Partsin East China.

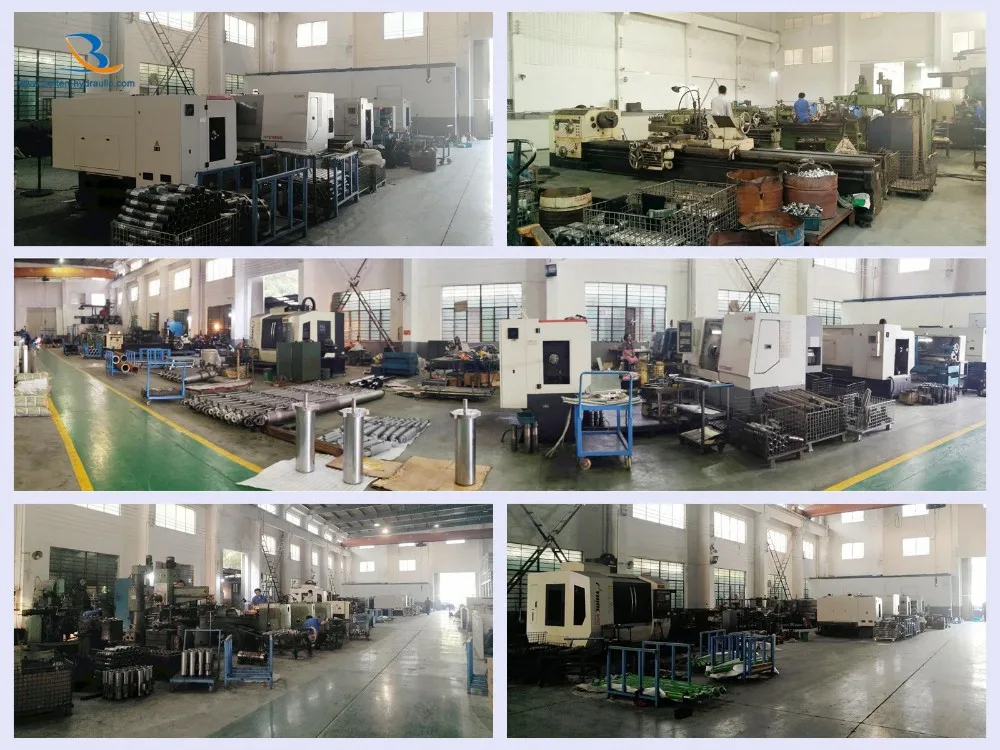

Our factory cover an area of over 5000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.

With the fast development in the past 20 years, we have gained much experience and technology in making various types of hydraulic rotary actuator with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.

Our Service

1.Design Services

Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services

raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure

We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4.Research & Development

We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control

Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6.Certification

Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
100KG



Packaging Details
whether you require delivery FOB to a port in China or CIF to a port near you, we are happy to quote and supply cardan drive shaft whichever way you choose.
- Utilizing your own freight-forwarder
- FOB to a port in China
- CIF to a port near you
