Shock Absorber Hydraulic Cylinder Piston Rod

FOB Reference Price:Get Latest Price
$5.00 - $15.00 / Kilograms | 1000 Kilogram/Kilograms (Min. Order)
Model Number:
BMT-Hydraulic Piston Rod-10
Lead Time:
Quantity(Kilograms) 1 - 100 101 - 2000 >2000
Est. Time(days) 30 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Hydraulic Piston Rod
Brand Name:
BOLI
Place of Origin:
Jiangsu, China (Mainland)
Product name:
Shock Absorber Hydraulic Cylinder Piston Rod
Material:
45# Carbon Steel
Machining Accuracy of Piston Rod:
ISO 2768-1-f
Surface Hardness of Piston Rod:
HRC30~HRC60
Quench Degress:
0.7-1.5
Surface Treatment of Piston Rod:
Hard chrome plated/induction hardened/Quenched&Tempered
Chrome thickness:
20μm(min)
Surface Roughness of Piston Rod:
Ra0.1 or Less than Ra0.1
Avalable Dia of Piston Rod:
6-50 mm
Tolerance of Piston Rod:
ISO f7
Supply Ability
Supply Ability:
300 Ton/Tons per Month
Packaging & Delivery
Packaging Details
1- First one layer of plastic film to cover the piston rod
2- Carton, Wooden Box, (or according to customers' requirements) for bulks.
Delivery Detail: Shipped in 20 days after payment
Port
Shanghai
Lead Time :
Quantity(Kilograms) 1 - 100 101 - 2000 >2000
Est. Time(days) 30 25 To be negotiated
Product Description

Shock Absorber Hydraulic Cylinder Piston Rod


Betten Hydraulic is specialize in providing high quality piston rod for hydraulic cylinders both at domestic and overseas market as well as hydraulic cylinders.


Piston rod is a very important part for hydraulic cylinder :

Piston rod steel grade : SAE1045, 42CrMo4, SUS410 ,SUS420, SUS304, SUS316L

Piston rod chromating and surface hardness:
Betten Hydraulic ensure that every piece of piston rod would be surface hardened before chromating ,surface hardness is HRC55~60 , Chromating film thickness is 0.03~0.04mm if there is no other specific requirements .

For material part, we purchase steel raw material from well-known mills, which must pass inspections of surface tension prior to their use.

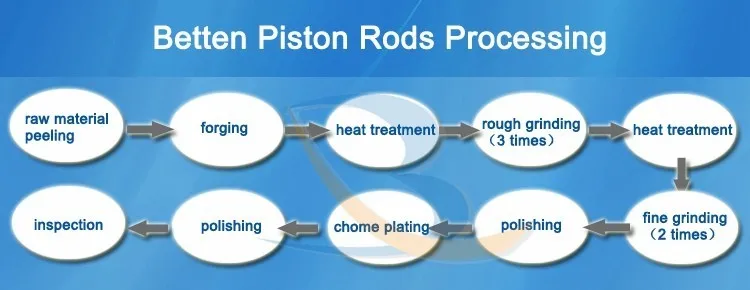

For processing part, we use a CNC lathe for machining process, and imported centerless grinder. our electroplating workshop uses micro-crack hard chrome plating technology.

For testing part, our testing equipment includes projector, micro hardness testing machine, universal tensile machine, metallographic analyzer, thickness tester, salt spray testing machine. All of them keep our hydraulic piston rods have good quality and deliver in time.


Our Maximum monthly capacity is 300-400 ton. The good quality and price of Betten hydraulic cylinder piston rods have made them sought after by customers regions in Europe, South America, Asia, and more. We looking forward to working with more global customers and invite you to contact us for further information or assistance.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Technical Data
Shock Absorber Hydraulic Cylinder Piston Rod
Model
Hardened Shaft, Chrome shaft, Soft shaft, Hollow shaft,axis,piston rod
Diameter
Metric Diameter:3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm,20mm,25mm.....300mm
Inch Diameter:6.35mm.9.525mm.12.7mm,15.875mm,19.05mm,25.4mm,31.75mm,38.1mm
Length
Full Length 6000mm, it can be cut off according to customer requirement.
Quality
ISO9001:2008 standard
Material
CK45 (SAE1045, S45C), 42CrMo (SAE4140), 20MnV6,St52, Stainless Steel
Surface finish
Hard Chrome / None Chrome
Plating Thickness
10um ~ 20um in radius.
Heat treated
Not Hardened / Induction Hardened
Hardness
HRC:58-62
Hardness Depth
0.8-3.0mm
Precision
g6, h6, h7 or according to your requirement.
Roughness
Less than 1.5μm
Straightness
Less than 1.5μm of 100mm (Rmax)
Roundness
Less than 3.0μm (Rmax)
Performance
Long life and low noise
Custom-made
End Stepped, End Tapped, End Tread, Wrench Flats, Cross Drilled Holes, Key Groove, Set Screw Grooved, and so on.
Application
Machine centers ,Machine tools, Precision machining machines, Heavy cutting machines,Punching machines, Marble cutting machines, Automatic equipment, Grinding machines, High speed transfer

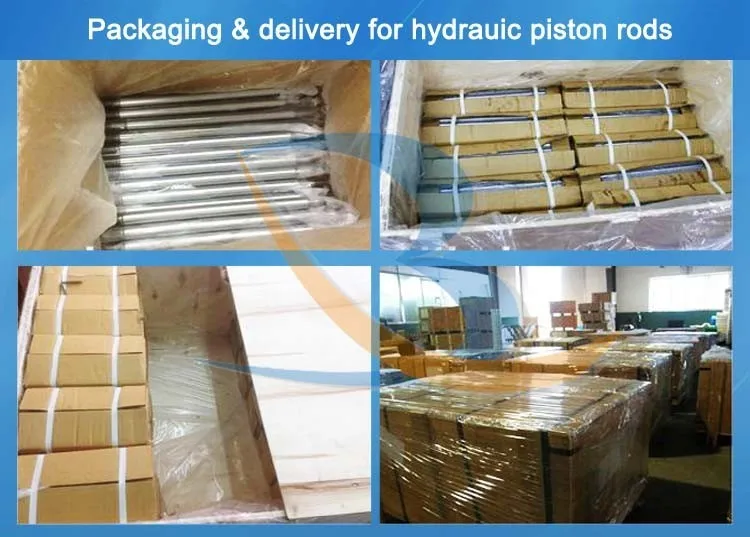

Packing & Delivery

 Each Hydraulic Cylinder piston rod is wrapped with anti-rust paper and packed into a paper box. Then paper box is packed into a wooden box.

Related Products
Our Company

Betten Hydraulic-Built Cylinders to Fit Your Needs
As an experienced Hydraulic Cylinder Manufacturer, Betten Machinery is built to develop the overseas business of Boli Hydraulic & Pneumatic Technology Co., Ltd which is known as a professional manufacturer of Oil Cylinder,Pneumatic Cylinder, Hydraulic System and Related Spare Partsin East China.

Our factory cover an area of over 5000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.

With the fast development in the past 20 years, we have gained much experience and technology in making various types of  Tractor hydraulic cylinder with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.

Our Service

Since 1990s, Betten team are becoming more and more skilled to provide customized hydraulic cylinder solutions by satisfying the most strict customers and their requirements.


Each Betten Hydraulic Cylinder has suffered rigorous processe and inspection to promise the good quality for our customer.
