Custom Rotary Hydraulic Cylinder

FOB Reference Price:Get Latest Price
$5.00 - $200.00 / Pieces | 1 Piece/Pieces (Min. Order)
Maximum Stroke:
15500mm
Shaft Diameter:
30-1000mm
Model Number:
BMTT200/125-300
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining
Standard or Nonstandard:
Nonstandard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
Steel
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Boli
Product name:
Custom Rotary Hydraulic Cylinder
Cylinder Tube Material:
Carbon steel, Stainless steel, customer need
Piston Rod Chome Plated:
Cr, Ni or Ceramic
Chrome Plated Thickness:
10-100um
Working Pressure:
Max 700 Bar (10150 Psi)
Force/Capacity for Hydraulic Ram:
1ton-1000ton
Seals kit:
Parker (USA), Merkel (Germany) or Nok (Japan)
Application for this Hydraulic Cylinder:
Engineering Machinery (Excavator/ Forklift/ Cranes
Supply Ability
Supply Ability:
15000 Piece/Pieces per Year
Packaging & Delivery

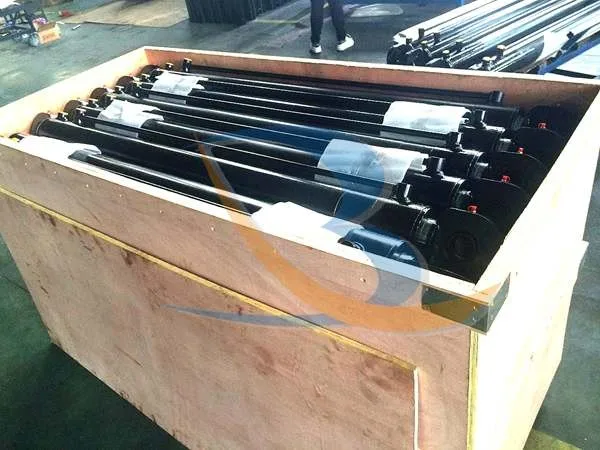

Packaging Details
Packaging Details:carton,Wooden Box,Steel Tower(or according to customers' requirements) for Compact Hydraulic Cylinder.
Delivery Detail: Shipped in 7-25 days after payment
Port
Shanghai or as required
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Product Description

Custom Rotary Hydraulic Cylinder

Each Betten Hydraulic Ram has suffered rigorous process and inspection to promise the good quality for our customer.

Design Services → Product Services →Sample Procedure →Research & Development →Quality Control →Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.

Betten Hydraulic rotary actuators' innovative, sliding-spline operation technology converts linear piston motion to powerful shaft rotation.Each actuator is composed of a housing and two moving parts- the central shaft and piston.The spline teeth on the shaft engage matching teeth on the piston's inside diameter.A second set of splines on the piston's outside diameter mesh with the gear on the housing.


Technical Data

BMT-10 series Hydraulic Rotary Actuator

BMT-20 series Hydraulic Rotary Actuator

BMT-30 series Hydraulic Rotary Actuator

BMT-T series Hydraulic Rotary Actuator

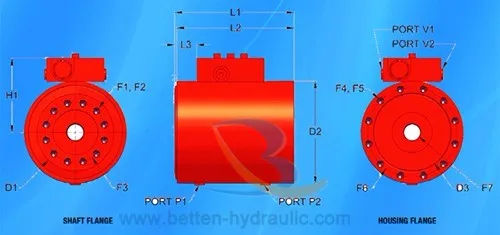

BMT-10 SERIESE
Rotation:180°-360°
Max Drive Torque:1,700-25,000 in Ib
Max Holding Torque: 5,600-83,000 in Ib
Max Straddle Moment : 5,000-100,000 in Ib
Max Cantilever Moment:5,000-100,000 in Ib
Mounting: Flange

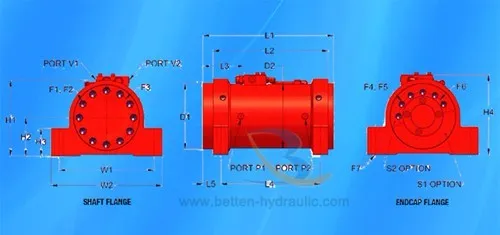

BMT-20 SERIESE
Rotation:180°
Max Drive Torque:4,500-39,000 in Ib
Max Holding Torque: 11,800-93,200 in Ib
Max Straddle Moment : 22,500-280,000 in Ib
Max Cantilever Moment:12,000-140,000 in Ib
Mounting: Foot



BMT-30 SERIESE
Rotation:180°-360°
Max Drive Torque:17,000-380,000 in Ib
Max Holding Torque: 43,600-936,000 in Ib
Max Straddle Moment : 119,000-1,505,000 in Ib
Max Cantilever Moment:45,900-570,000 in Ib
Mounting: Flange or Foot



BMT-T SERIESE
Rotation:200°-220°
Max Drive Torque:25,000-60,000 in Ib
Max Holding Torque: 54,200-127,000 in Ib
Max Straddle Moment : 37,500-90,000 in Ib
Mounting:  Foot

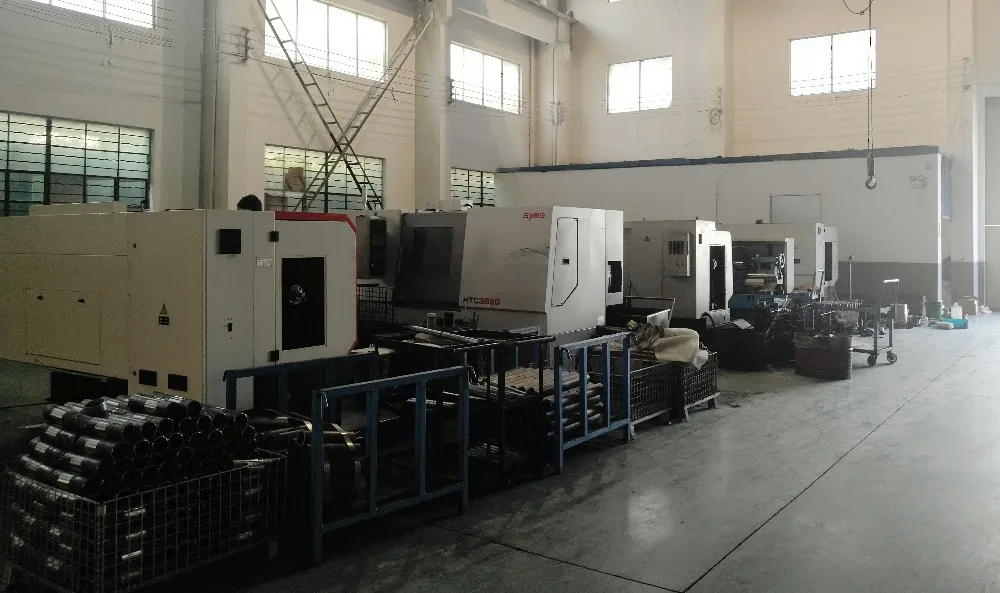

Our factory

Betten Hydraulic-Built Cylinders to Fit Your Needs


As an experienced Hydraulic Cylinder Manufacturer, Betten Machinery is built to develop the overseas business of Boli Hydraulic & Pneumatic Technology Co., Ltd which is known as a professional manufacturer of Oil Cylinder,Pneumatic Cylinder, Hydraulic System and Related Spare Partsin East China.


with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.

With the fast development in the past 20 years, we have gained much experience and technology in making various types of Tractor hydraulic cylinder with our expert team. Our products are widely used in equipment such as toyota machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
Our Service

Since 1990s, Betten Hydraulic Manufacturer team are becoming more and more skilled to provide  power steering cylinder solutions by satisfying the most strict customers and their requirements.

Each Betten Hydraulic Cylinder has suffered rigorous processe and inspection to promise the good quality for our customer.

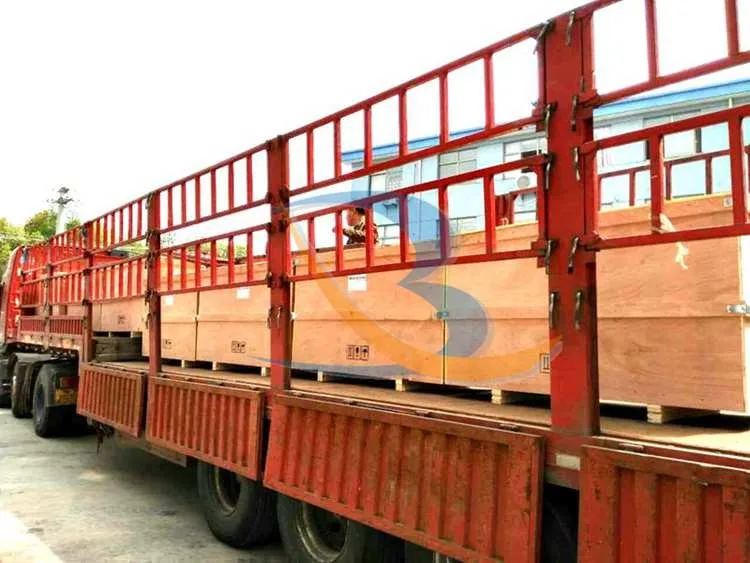

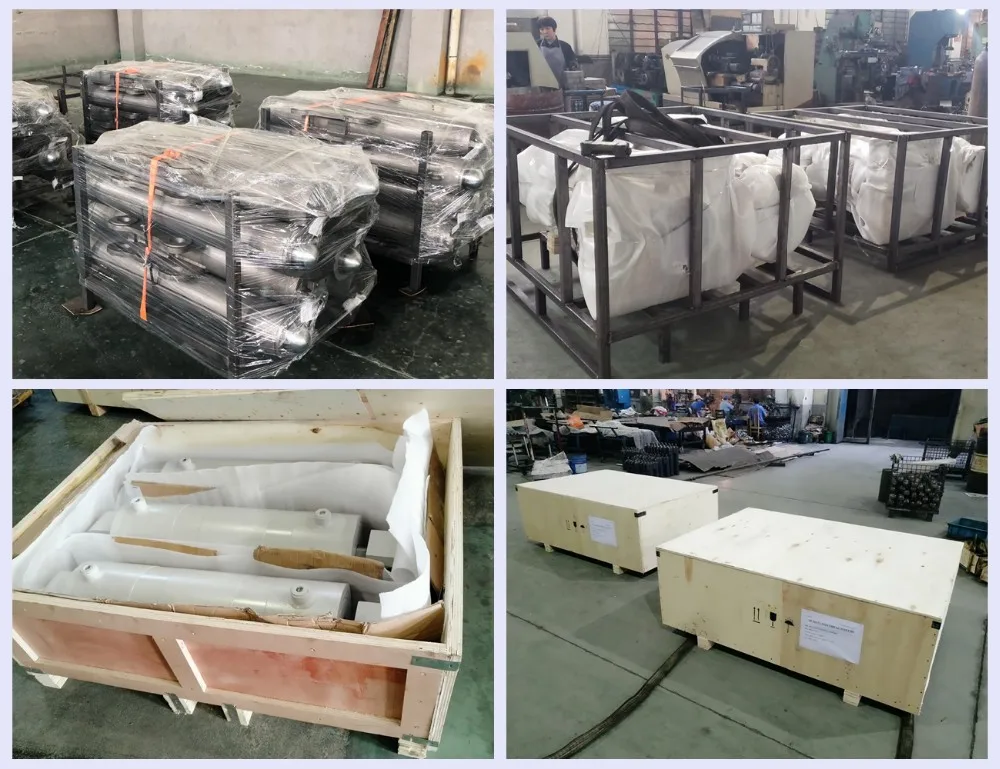

Packing & Delivery

Delivery time depends on the destination and other factors, it may up to 7 work days.

After we ship the goods, we will email you the shipping information, as well as tracking number.

WEIGHT
RECOMMENDED TRANSPORT MEANS
TRANSPORT TIME
COMMENTS

<50kg

Express-UPS/DHL/FEDEX
Door to Door Service

3-7 days
Fast ;
convenient ;
expensive.

50-150kg

by air

3-10 days
fast;
economic;
consignee has to do customs clearance.


150>kg


by sea


10-50 days
slow;
economic;
it takes some time for customs declearance and clearance



2x20' or 1x40'



by rail



20-35 days
slow;
economic;
it takes some time for customs declarance and clearance;
only full container load accepted ( MOQ:2x20' or 1x40'
FAQ

1. How to customize hydraulic cylinders?

Please provide the details below:
♣Cylinder bore
♣Rod diameter
♣Stroke
♣mounting style
♣working pressure and test pressure
♣Seals brand
♣special modifications.
♣ports

2. What is your cylinder application?


♣ Construction Machinery
♣ Metallurgy Machinery

♣ Mining machinery
♣ Hydraulic power project

♣ Hydraulic Press Machinery

♣ Marine Industry
