Hydraulic rotary actuator for sale

FOB Reference Price:Get Latest Price
$100.00 - $3,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Nonstandard
Structure:
Rotary Cylinder
Power:
Hydraulic
Body Material:
Steel
Maximum Stroke:
Stroke for hydraulic rotary actuator ≤18000mm
Shaft Diameter:
Bore Dia for hydraulic rotary actuator ≤2000mm
Place of Origin:
Jiangsu, China (Mainland)
Model Number:
BMT- hydraulic rotary actuator
Brand Name:
BOLI
hydraulic rotary actuator Mounting:
Foot/ Flange or as per required
Machine Size:
0.1-21 ton
Torque Range:
1700-220000 Ib
hydraulic rotary actuator Pressure:
160-250 bar
Bearing Capacity:
High
Internal Leakage:
None
Shock resistance:
High
hydraulic rotary actuator Backlash:
Low
Acting type:
Rotary Hydraulic Actuator
hydraulic rotary actuator Application:
Agricultural/Construction/Energy/Mrine/Mining
Supply Ability
Supply Ability:
15000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Best Hydraulic oil cylinder Manufacturer:
Carton, Wooden Box, Steel Tower (or according to customers' requirements) for hydraulic rotary actuator
Port
Shanghai or as required
Detailed Image

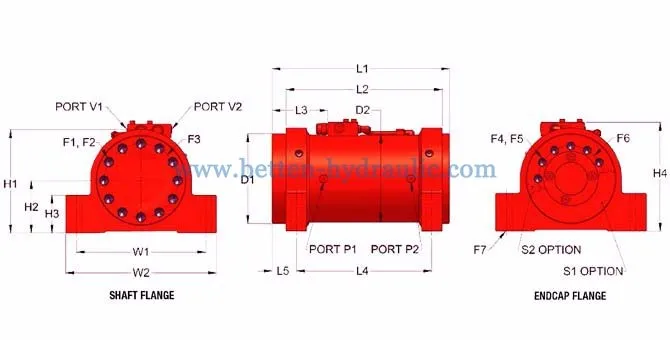

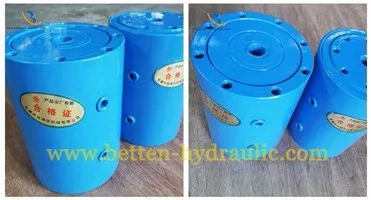

BMT-10 series Hydraulic Rotary Actuator

BMT-10 series Hydraulic Rotary Actuator

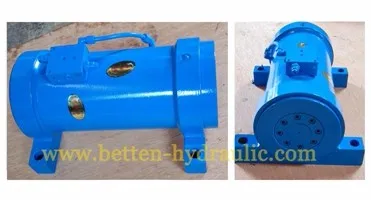

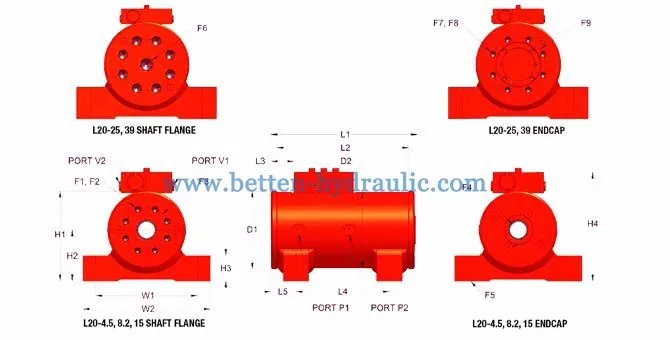

BMT-20 series Hydraulic Rotary Actuator

BMT-20 series Hydraulic Rotary Actuator

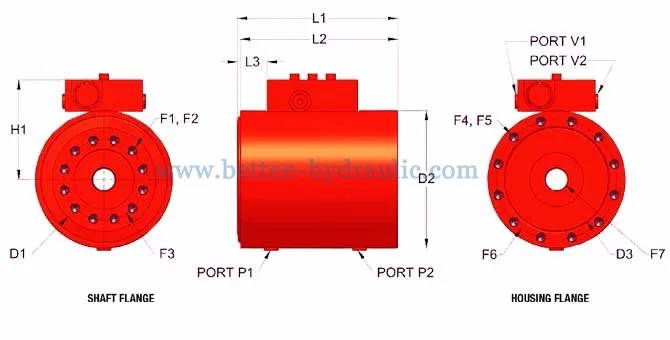

BMT-30 series Hydraulic Rotary Actuator

BMT-30 series Hydraulic Rotary Actuator

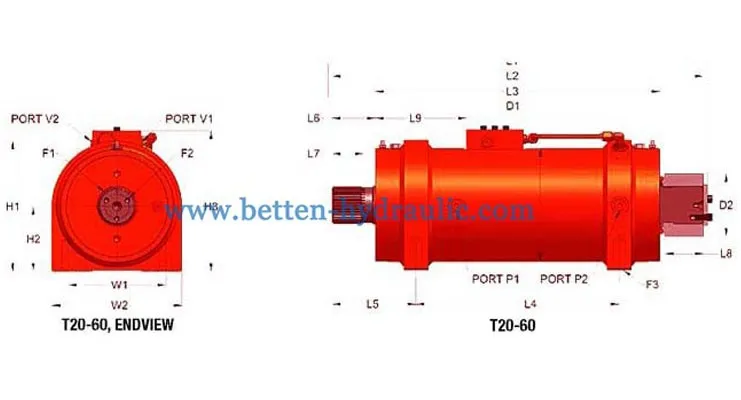

BMT-T20 series Hydraulic Rotary Actuator

BMT-T20 series Hydraulic Rotary Actuator

Technical Data




BMT-10 SERIESE
Rotation:180°-360°
Max Drive Torque:1,700-25,000 in Ib
Max Holding Torque: 5,600-83,000 in Ib
Max Straddle Moment : 5,000-100,000 in Ib
Max Cantilever Moment:5,000-100,000 in Ib
Mounting: Flange



BMT-20 SERIESE
Rotation:180°
Max Drive Torque:4,500-39,000 in Ib
Max Holding Torque: 11,800-93,200 in Ib
Max Straddle Moment : 22,500-280,000 in Ib
Max Cantilever Moment:12,000-140,000 in Ib
Mounting: Foot



BMT-30 SERIESE
Rotation:180°-360°
Max Drive Torque:17,000-380,000 in Ib
Max Holding Torque: 43,600-936,000 in Ib
Max Straddle Moment : 119,000-1,505,000 in Ib
Max Cantilever Moment:45,900-570,000 in Ib
Mounting: Flange or Foot



BMT-T SERIESE
Rotation:200°-220°
Max Drive Torque:25,000-60,000 in Ib
Max Holding Torque: 54,200-127,000 in Ib
Max Straddle Moment : 37,500-90,000 in Ib
Mounting:  Foot
Product Description

Betten Hydraulic rotary actuators are designed to replace mltiple components and function as an all in one device with rotating device, mounting brakcet and bearings.

Betten Hydraulic rotary actuators' innovative, sliding-spline operation technology converts linear piston motion to  powerful shaft rotation.Each actuator is composed of a housing and two moving parts- the central shaft and piston.The spline teeth on the shaft engage  matching teeth on the piston's inside diameter.A second set of splines on the piston's outside diameter mesh with the gear on the housing.

Our Service

Since 1990s, Betten Hydraulic Manufacturer team are becoming more and more skilled to provide long hydraulic cylinder solutions by satisfying the most strict customers and their requirements.

Each Betten Hydraulic Cylinder has suffered rigorous processe and inspection to promise the good quality for our customer.

Packing & Delivery
Packaging and Delivery
Lead Time
Delivery time depends on the destination and other factors, it may up to 7-40 work days.
Sample
As an experienced hydraulic rotary actuator Manufacturer, to ensure you receive you order tax free upon import, we will declare it as a “Sample”with a reasonable value.This price does not reflect the total price you paid.
Delivery
After we ship the goods, we will email you the shipping information, as well as tracking number.
Our Company

Betten Hydraulic—Built Cylinders to Fit Your Needs


As an experienced Hydraulic Cylinder Manufacturer, Betten Machinery is built to develop the overseas business of Boli Hydraulic & Pneumatic Technology Co., Ltd which is known as a professional manufacturer of Oil Cylinder,Pneumatic Cylinder, Hydraulic System and Related Spare Partsin East China.

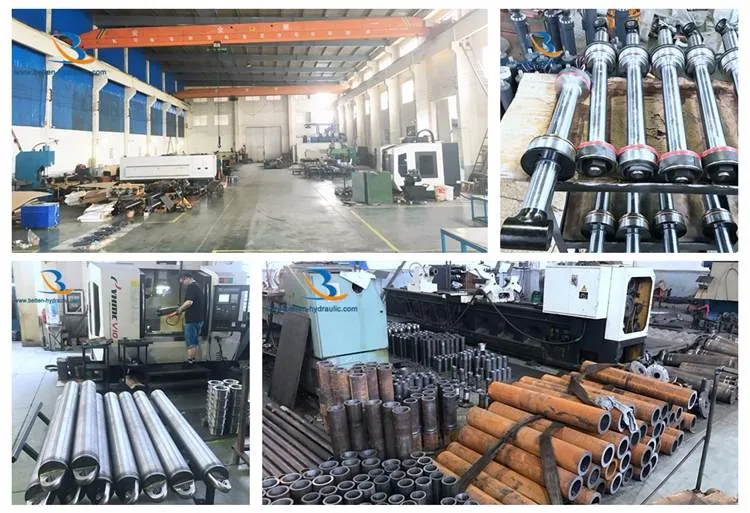

Our factory cover an area of over 5000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers’ satisfaction for reasonable price, timely delivery and good after-sale service.

With the fast development in the past 20 years, we have gained much experience and technology in making various types of hydraulic rotary actuator with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.

FAQ

1. How to customize hydraulic rotary actuator?

Please provide the details below:
♣Cylinder bore
♣Rod diameter
♣Stroke
♣mounting style
♣working pressure and test pressure
♣Seals brand
♣special modifications.
♣ports

2. What is your hydraulic cylinder application?


♣ Construction Machinery
♣ Metallurgy Machinery

♣ Mining machinery
♣ Hydraulic power project

♣ Hydraulic Press Machinery

♣ Marine Industry
