electric tractor pusher

FOB Reference Price:Get Latest Price
$100.00 - $500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
DYTZ DYTP DYTF
Compatible Brand:
LiuGong XCMG
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 14 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining
Place of Origin:
Jiangsu, China
Brand Name:
BMT
Warranty:
1 Year
After-sales Service Provided:
Online support
Type:
electric hydraulic ram
Application:
For Tractors, Trucks...
Stroke:
50-3500mm
Thrust Force(10N):
450-20000
Pulling Force(10N):
310-15000
Material:
Carbon Steel/stainless steel
Pushing Speed:
25-110mm/s
Pulling Speed:
35-140mm/s
Power Consumption:
0.75-15kw
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Packaging Details: carton,Wooden Box,Steel Tower(or according to customers' requirements)
Delivery Detail: Shipped in 7 days after payment
Port
Shanghai or as required
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 14 To be negotiated
Product Description

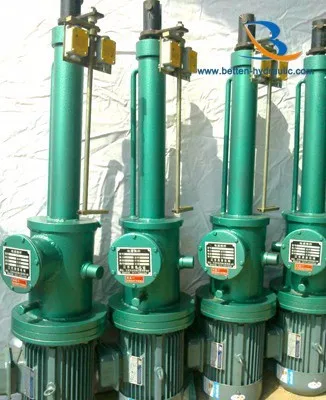

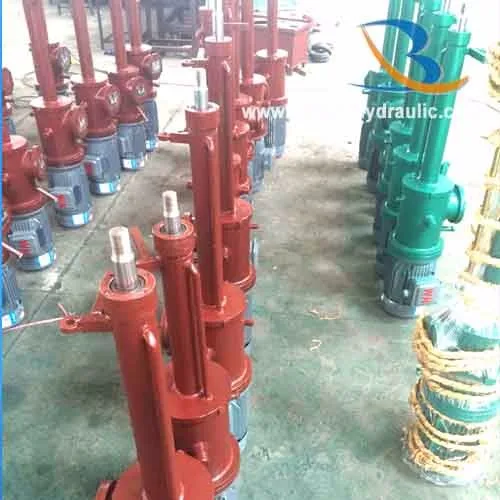

Betten Electro Hydraulic Pusher:

DYTF series electro-hydraulic pusher is a set machine, electricity, liquid as one of the hydraulic driving device, can be widely used in metallurgy, building materials, chemical industry, lifting the transport and port handling machinery, the valve gate, reversing, tilting, swing and other mechanical drive control amount, can replace the traditional electric putt, hydraulic cylinder ( with a hydraulic station drive ) and cylinder ( by pump station drive control ).

Main characteristics


1, compact structure, convenient installation, small occupied space, easy maintenance;

2, circuit is provided with a bidirectional pressure self-locking device, can be in the range of travel stop in any position and self locking, and maintain constant output force;

3, when the accident off, push rod can be automatically locked in this position, to avoid the generation of accidents;

4, all concentrated in the hydraulic device inside the body, without external pipelines, oil seal are imported brand-name seal, the sealing effect is good, no liquid leakage pollution, and long service life;

5, simple electronic control, through the addition of a limit switch, is easy to realize the remote and dangerous regional operations control, automatic control and computer ( PLC ).

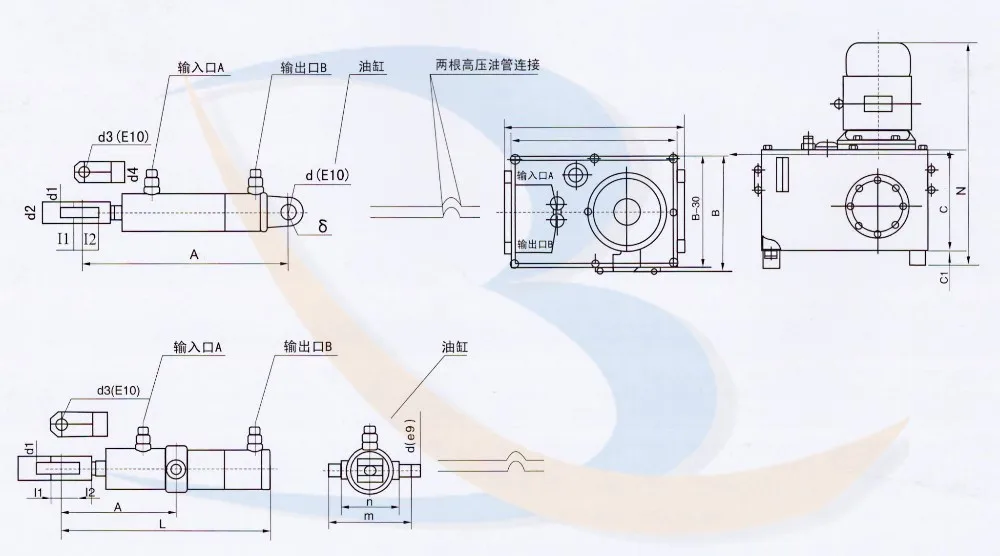

Technical datas


Model
Rated Output Rate(10N)
Rates Speed(mm/s)
Motol Type
Stroke(mm)
Speed Made Rate(mm/s)
Push
Pull
Push Speed
Pull Speed
DYTF450-□/100
450
310
150
180
Y90S-4-0.75KW
DYTF700-□/100
700
500
100
100
Y90S-4-1.1KW
DYTF1000-□/100
1000
310
100
100
Y90L-4-1.5KW
DYTF1750-□/80
1750
1300
80
80
Y100L1-4-2.2KW
DYTF2500-□/80
2500
1900
80
80
Y100L1-4-2.2KW
DYTF3000-□/80
3000
2200
80
80
Y100L2-4-3KW
DYTF4000-□/60
4000
3000
60
60
Y100L2-4-3KW
DYTF5000-□/60
5000
3800
60
60
Y112M-4-4KW
DYTF7000-□/50
7000
5200
50
50
Y112M-4-4KW
DYTF8500-□/40
8500
6000
40
40
Y132S-4-5.5KW
DYTF10000-□/30
10000
7500
30
30
Y132S-4-5.5KW
DYTF15000-□/30
15000
11000
30
30
Y132M-4-7.5KW
DYTF20000-□/20
20000
15000
20
20
Y132M-4-7.5KW

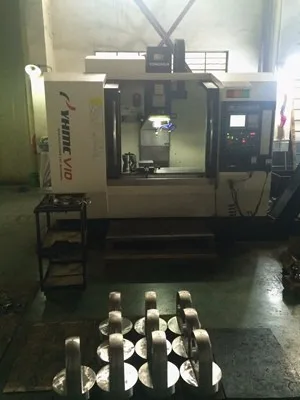

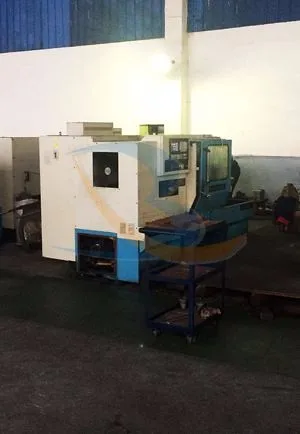

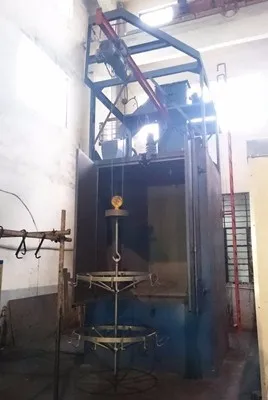

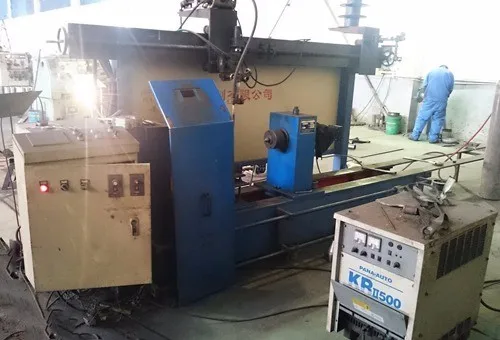

Our Equipment

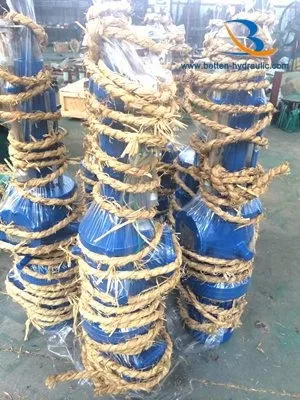

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
100kg



Packaging Details
whether you require delivery FOB to a port in China or CIF to a port near you, we are happy to quote and supply cardan drive shaft whichever way you choose.

- Utilizing your own freight-forwarder

- FOB to a port in China

- CIF to a port near you
Our Service

1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6.Certification
Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.

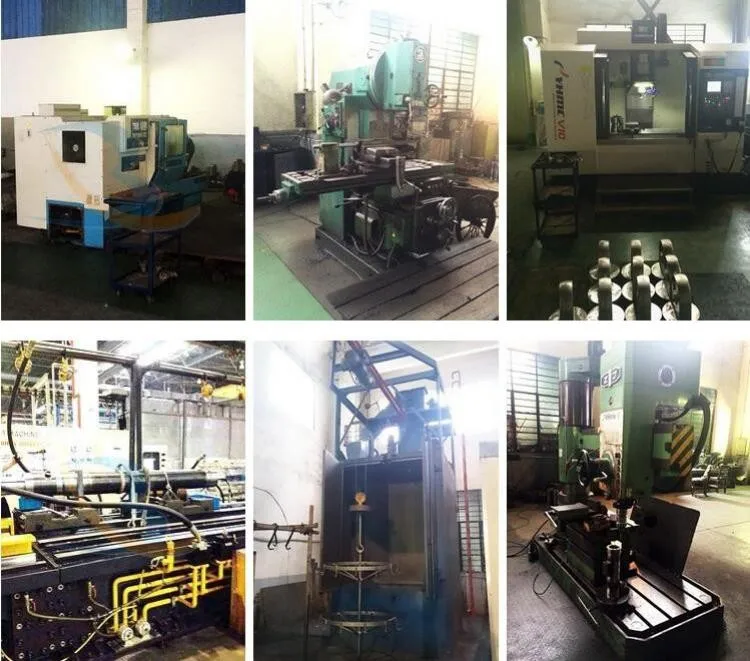

Our factory

Betten Hydraulic-Built Cylinders to Fit Your Needs


As an experienced Hydraulic Cylinder Manufacturer, Betten Machinery is built to develop the overseas business of Boli Hydraulic & Pneumatic Technology Co., Ltd which is known as a professional manufacturer of Oil Cylinder,Pneumatic Cylinder, Hydraulic System and Related Spare Partsin East China.


with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.

With the fast development in the past 20 years, we have gained much experience and technology in making various types of Tractor hydraulic cylinder with our expert team. Our products are widely used in equipment such as toyota machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
FAQ
1.Are you a manufacturer?

We have own fatory and produced hydraulic cylinder for nearly 20years.

2.Do your products come with a warranty?

We have one year warranty. In this year, if the quality problem we will free repair for you.

3. Can I customize our products from your factory?

We can make products according to your requirements. Please kindly send me your specifications and drawings.

4. Can you help me to install or give me advice about what kind of hydraulic cylinder or power pack should I use for specific machine?

We have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.

5. How do you deliver the products?

--By sea

--By plane

--By couriers. DHL, UPS, TNT and so on.

6. How many days the samples can be finished, And how about the mass production?

-Generally 5-7days for samples making.

--The lead time of mass production will depend on quality, production art and so on. Generally 35days.r since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
